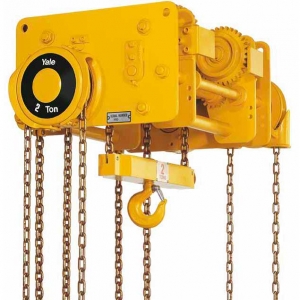

Yale VNRP/VNRG Low Headroom Push and Geared Trolley Hoist
Range from 1500kg to 24000kg
On account of a special chain reeving system and corresponding chain guide the trolley hoist series VNRP/VNRG offers minimum headroom and maximum usage of the available room height.
These hoists have been specially designed for heavy industrial applications.
Available for sale and hire. Fast dispatch from the UK.
Description
Technical Data
Description
- All-steel construction with zinc-plated load and hand chains.
- All units are built to order for a predetermined beam dimension. They cannot be adjusted retro-actively to other beam sizes.
- Anti-drop and anti-tilt devices as standard.
Options
- Chain container and buffers.
- Overload protection device.
Technical Data
Model | Capacity (WLL) Kg | Closed height mm | Curve radius min. mm | Pull on hand at WLL daN | Weight VNRP Kg | Weight VNRG Kg |
VNRP/G 1.5 | 1500 | 159 | 2000 | 19 | 95 | 105 |
VNRP/G 2.0 | 2000 | 159 | 2000 | 25 | 96 | 107 |
VNRP/G 3.0 | 3000 | 188 | 2000 | 20 | 140 | 153 |
VNRP/G 4.0 | 4000 | 203 | 2300 | 26 | 141 | 156 |
VNRP/G 5.0 | 5000 | 223 | 2600 | 36 | 263 | 290 |
VNRP/G 6.0 | 6000 | 223 | 2600 | 43 | 263 | 290 |
VNRP/G 8.0 | 8000 | 280 | 2900 | 30 | 298 | 354 |
VNRP/G 10.0 | 10000 | 292 | 3000 | 40 | 469 | 507 |
VNRP/G 12.0 | 12000 | 292 | – | 47 | 469 | 507 |
| VNRP/G 16.0 | 16000 | 346 | – | 31 | 734 | 771 |
| VNRP/G 20.0 | 20000 | 438 | – | 40 | 895 | 968 |
| VNRP/G 24.0 | 24000 | 438 | – | 47 | 895 | 968 |
