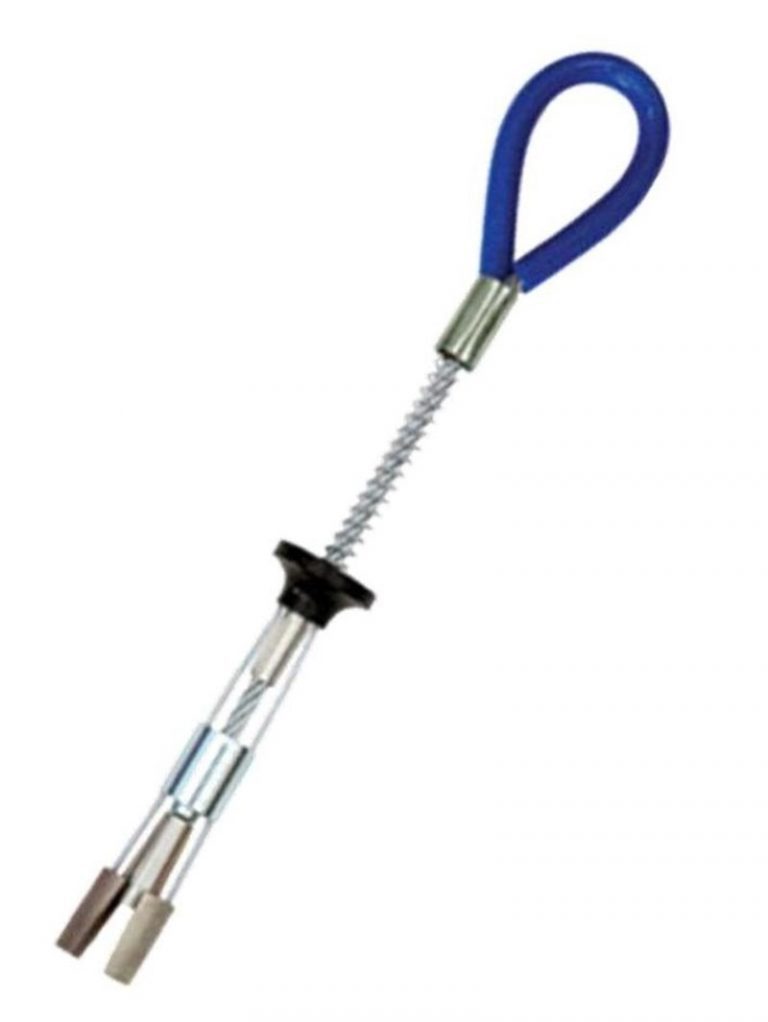

ISC CT102 Removeable Concrete Anchor
Durham Lifting’s ISC CT102 Removeable Concrete Anchor Devices are portable, reusable and can be used in vertical, horizontal or overhead concrete substrate surfaces.
Once a suitable hole has been drilled, the anchors can be inserted and removed as required. These anchors are suitable for use for fall protection applications. This anchor should be placed into a hole at least 89mm (31/2”) deep.
Conformance: OSHA 1926.502 CE 0321, ANSI Z359.1-2007, ANSI Z359.7-2011, EN 795:1996 (+A1:2000) Class B
Available from Durham Lifting. Fast dispatch from the UK.
Description
Technical Information
Description
- Weight 181g (6oz) WLL 140kg (310lbs)
- Spoon Diameter 20mm (3/4” )
- Length 293mm (111/2”)
- MBS 22kN (5,000lbf)
Technical Information
User Manual: Durham Liftings CT102 Removable Anchor-22kN
