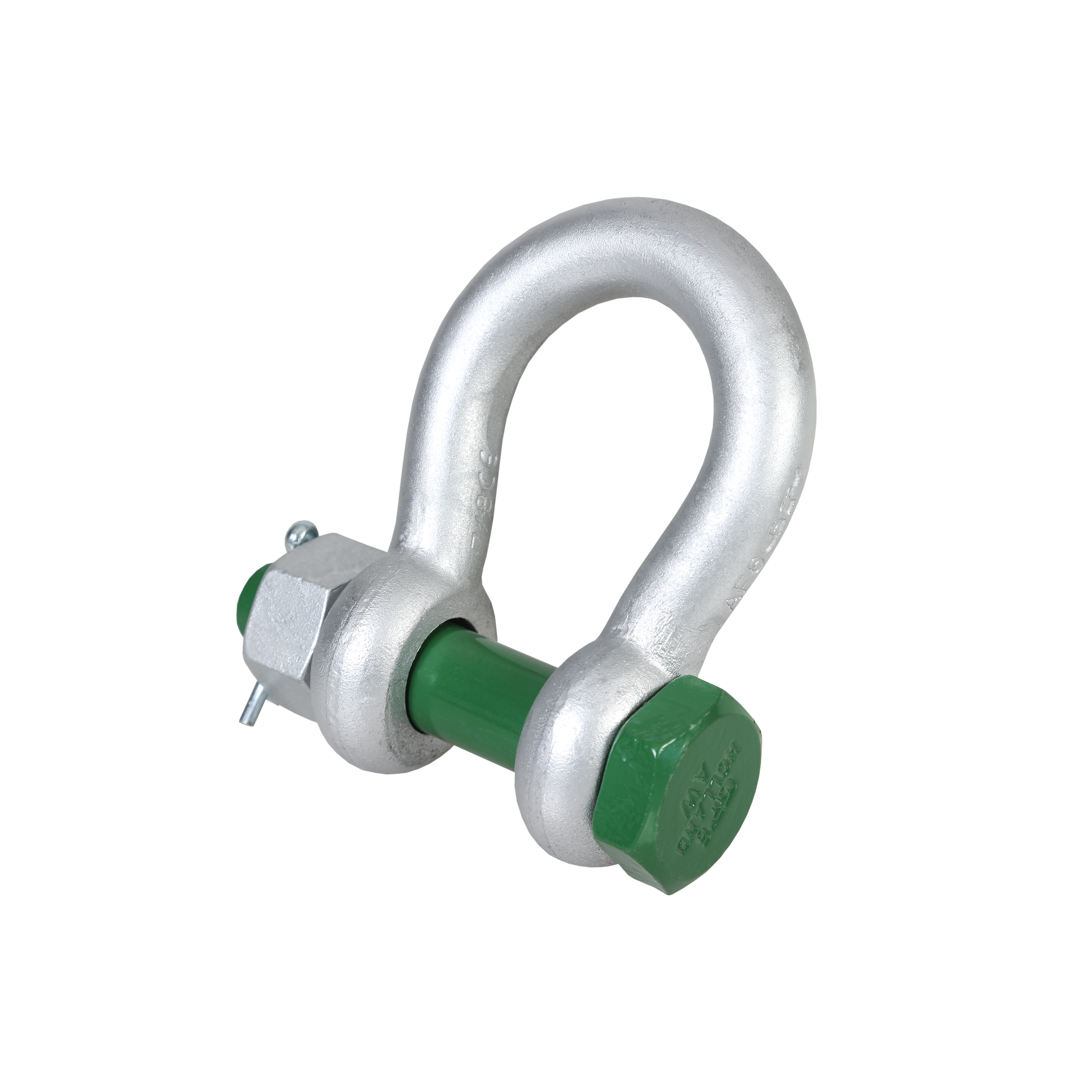

Green Pin Standard Bow - G-4161

with screw collar pin.
Range: 0.33 tonne to 55 tonne

Screw pin shackles are used mainly for non-permanent applications.

Available for sale and hire. Fast dispatch from the UK.
Durham Lifting are a Green Pin® shackle distributor.

Description

Shop by Product Type:

Lifting & Rigging

Multisec Lifting Systems

Hoisting

Load Securing

Jacking

Winching

Material Handling

Load Measurement

Safety

Crane Equipment

Crane Equipment

Used Equipment

Used Equipment

Technical Data

It is vital that the correct Shackle is chosen and all entities are considered. Please refer to the drawing below for product dimensions, and then select your shackle using the table.

working load limit (WLL)	bow dia.	pin dia.	eye dia.	width eye	width inside	length inside	width bow	length	length bolt	width bow	weight
tonnes	a (mm)	b (mm)	c (mm)	d (mm)	e (mm)	f (mm)	g (mm)	h (mm)	i (mm)	j (mm)	kg (each)
0.33	5	6	12	5	9.5	22	16	36	29.5	26	0.02
0.5	7	8	16.5	7	12	29	20	48.5	38	34	0.05
0.75	9	10	20	9	13.5	32	22	56	46.5	40	0.10
1	10	11	22.5	10	17	36.5	26	63.5	54	46	0.14
1.5	11	13	26.5	11	19	43	29	74	59.5	51	0.19
2	13.5	16	34	13.5	22	51	32	89	73	58	0.36
3.25	16	19	40	16	27	64	43	110	89	75	0.63
4.75	19	22	46	19	31	76	51	129	103	89	1.01
6.5	22	25	52	22	36	83	58	144	119	102	1.50
8.5	25	28	59	25	43	95	68	164	137	118	2.21
9.5	28	32	66	28	47	108	75	185	153	131	3.16
12	32	35	72	32	51	115	83	201	176	147	4.31
13.5	35	38	80	35	57	133	92	227	186	162	5.55
17	38	42	88	38	60	146	99	249	203	175	7.43
25	45	50	103	45	74	178	126	300	243	216	12.84
35	50	57	111	50	83	197	138	331	272	238	18.15
42.5	57	65	130	57	95	222	160	377	310	274	26.29
55	65	70	145	65	105	260	185	433	344	310	37.60
