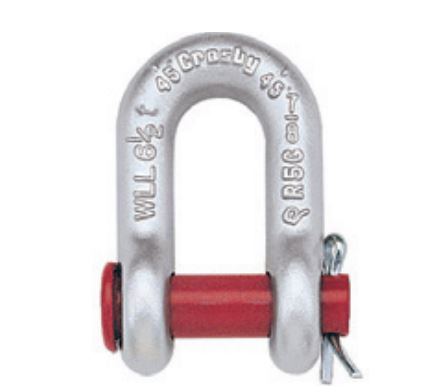

Crosby® 215 Round Pin Chain Shackles
Durham Lifting are an authorised stocking distributor of Crosby® Shackles
Durham Lifting’s Crosby® G-215 Round pin chain shackles meet the performance requirements of Federal Specification RR-C-271G Type IVB, Grade A, Class 1, except for those provisions required of the contractor.
Crosby shackle’s are a U-shaped piece of metal that has a pin or bolt across the opening. Can be used in tie down, towing, suspension or lifting applications where the load is strictly applied in-line. Round pin shackles should never be used in rigging applications to gather multiple sling legs, or where side loading conditions may occur.
Look for the Red Pin®, the mark of genuine Crosby quality.
Available for sale from Durham Lifting. Fast dispatch from the UK.
- Capacities 1/3 thru 55 metric tons, grade 6.
- Forged – Quenched and Tempered, with alloy pins.
- Working Load Limit and grade “6” permanently shown on every shackle.
- Hot Dip galvanized or self coloured.
- Sizes 3/8 inch and below are mechanically galvanized.
- Fatigue rated.
- Shackles 25t and larger are RFID EQUIPPED.
- Shackles can be furnished proof tested with certificates to designated standards, such
as ABS, DNV, Lloyds, or other certification. Proof testing and certificate available when
requested at the time of order, charges will apply. - Approved for use at -40° C (-40° F) to 204° C (400° F).
- All 209 and 210 shackles can meet charpy requirements of 42 Joules(31 ft•lbf) avg. at
-20° C (-4° F) upon special request. - Meets or exceeds all requirements of ASME B30.26.
NOTE: Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit. DO NOT SIDE LOAD ROUND PIN SHACKLES.
